Purpose-built precision
Weighbridge
Wintex weighbridges support factories, farms, mills, dispatch yards, and bulk loading operations with modular platform structures, sealed loadcells, and micro-processor based digital indication.
Configuration guidance · Installation · After-sales support
Designed for your operation
The details
make the difference.
Explore the capabilities of weighbridge and discuss the right configuration with our team.
Technical specifications
- Pit type, pitless, modular steel and semi RCC platform structure options
- Modular steel fabrication with up to two modules per weighbridge
- Pit-mounted and semi-concealed structures are assembled on civil foundations
- Standard platform plates are 12 mm thick and provided with anti-skid strips
- 4, 6, 8 or 10 loadcells are used depending on platform length and module count
- Loadcell capacities: 10 ton, 30 ton and 42.5 ton
- Linearity: <+/- 0.025% full scale output
- Hysteresis: <+/- 0.02% full scale output
- Non-repeatability: <+/- 0.01% full scale output
- Safe overload: 150% of rated capacity
- Temperature compensated range: 0-60 Degree C
- Construction: electro-less nickel plated tool steel
Features & capabilities
- Double-ended shear beam or compression loadcells made from high alloy tool steel
- Loadcells sealed against moisture ingression and nickel plated for corrosion resistance
- Digital indicator with high-performance micro processor based system
- Special optical isolators to protect against environmental noise
- Front-panel push-button calibration
- Designed for high precision, shock resistance, and overload resistance
Available configurations
- Pit Type Weighbridge: robust and accurate flush-platform installation for heavy-duty vehicle weighing.
- Pitless Weighbridge: above-ground installation with ramps, faster installation, and simpler maintenance access.
- Modular Steel Weighbridge: portable modular platform structure for flexible on-site weighing requirements.
- Semi RCC Weighbridge: semi-concealed steel and RCC construction for durable industrial installations.
Applications
- Factory dispatch
- Logistics yards
- Mines and quarries
- Farms, mills, and terminals
A structure for every site
Choose your foundation.
Four installation formats. Explore the structure that suits your site, access, and operating requirements.

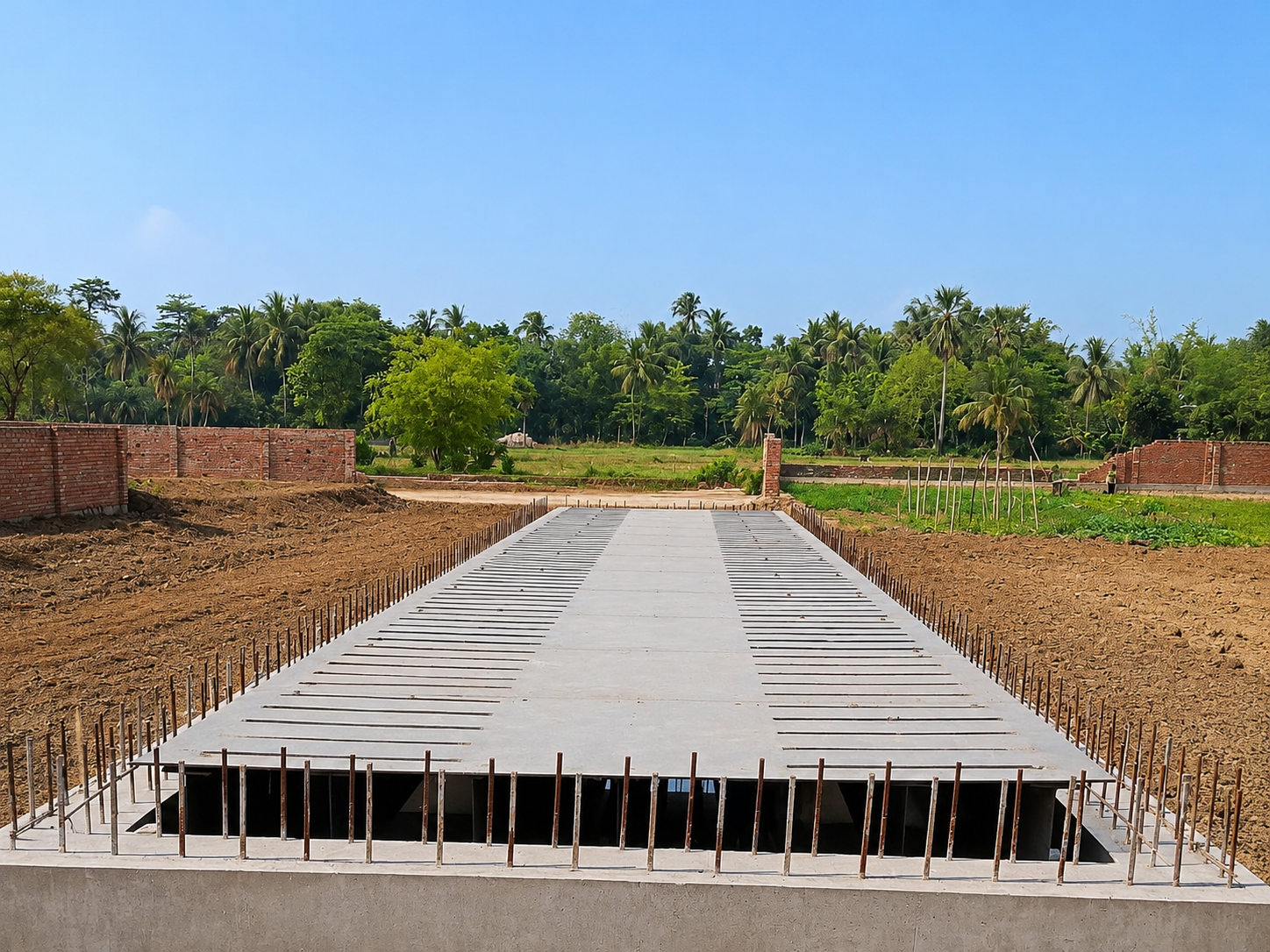

Pit Type Weighbridge
Flush-platform installation for heavy-duty applications where approach space is limited.

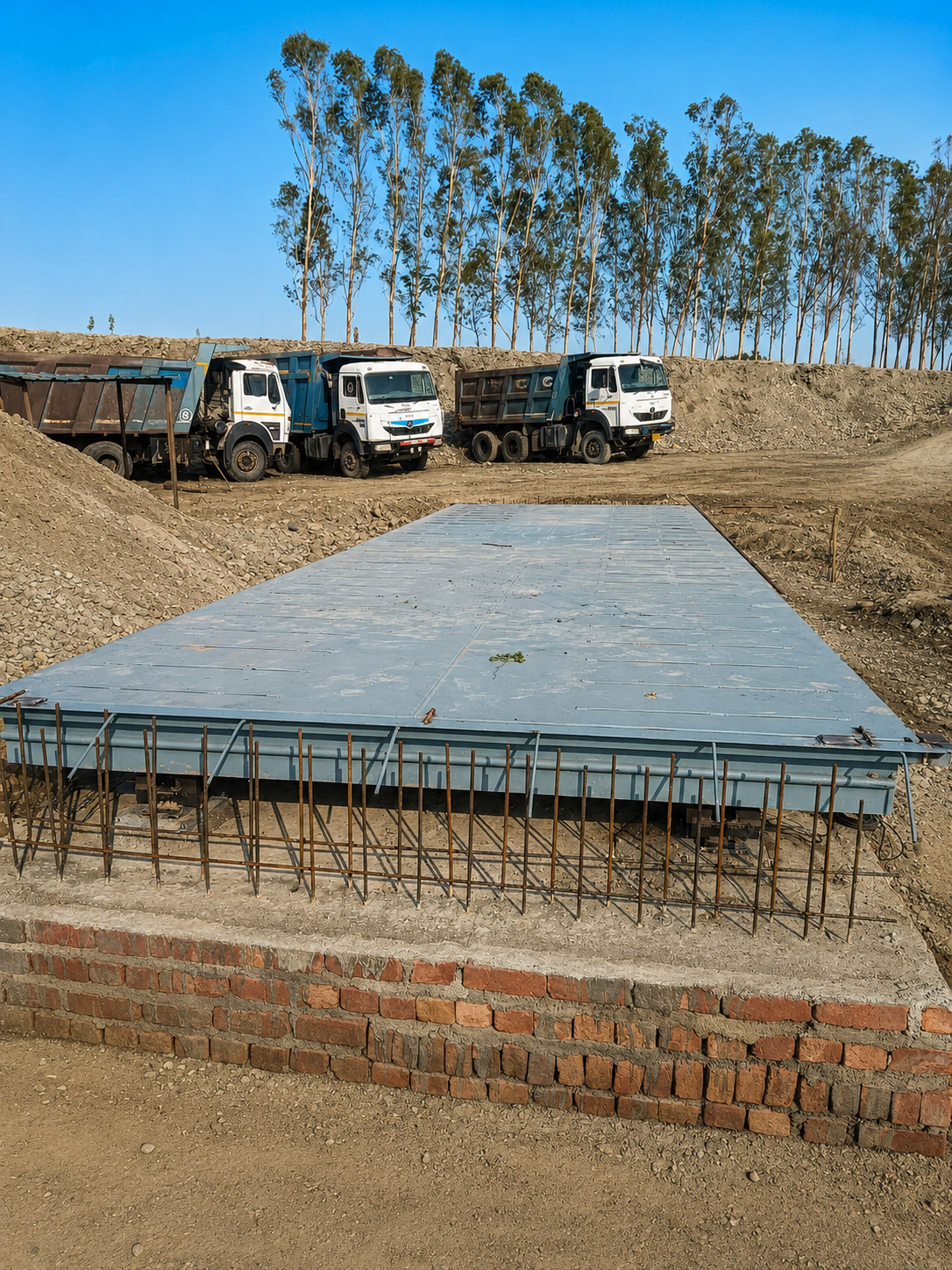

Pitless Weighbridge
Above-ground bridge with ramps for easier civil work, cleaning, and maintenance.

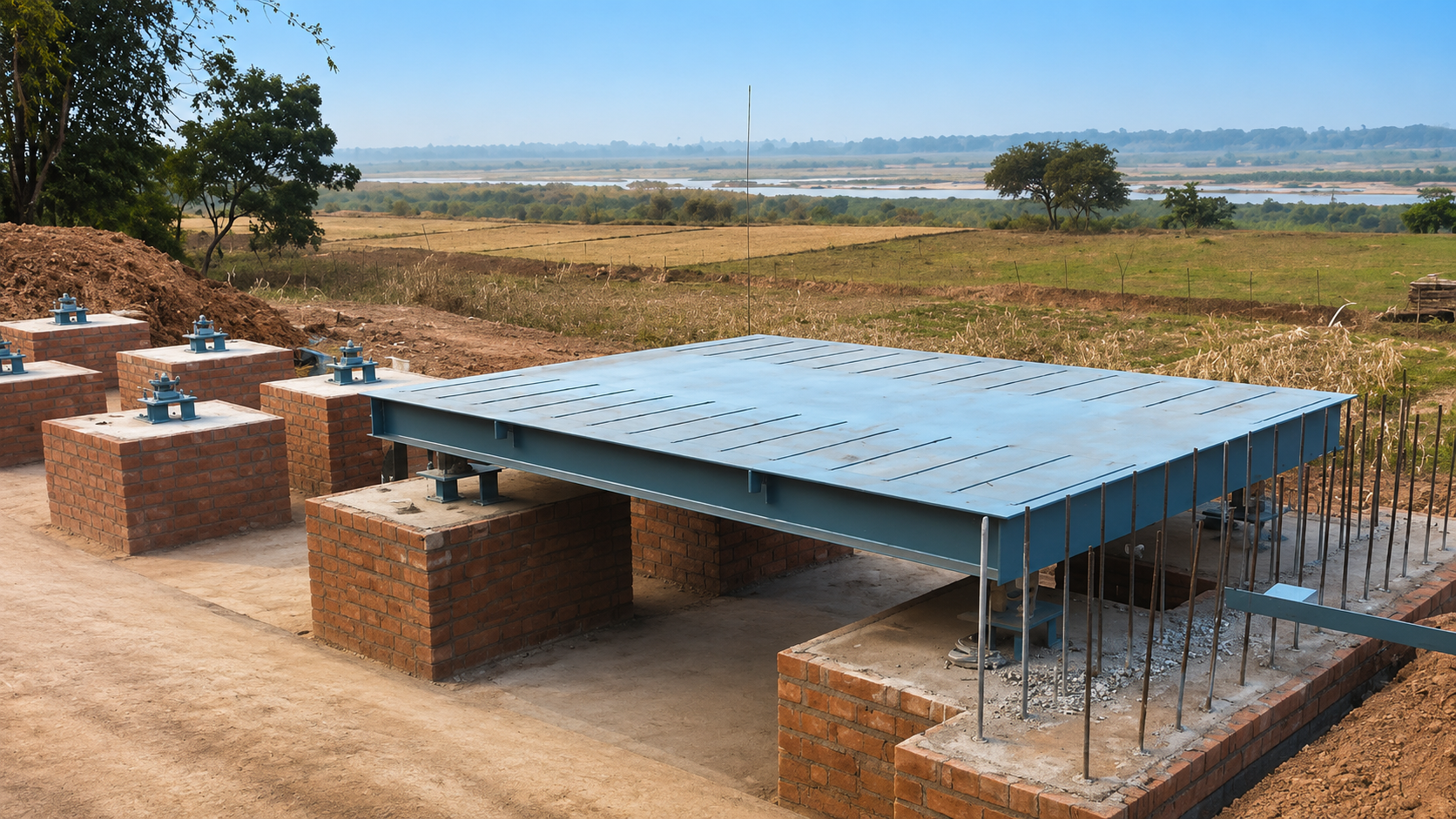

Modular Steel Weighbridge
Steel fabricated modules built for portable, scalable, and high-capacity weighing sites.

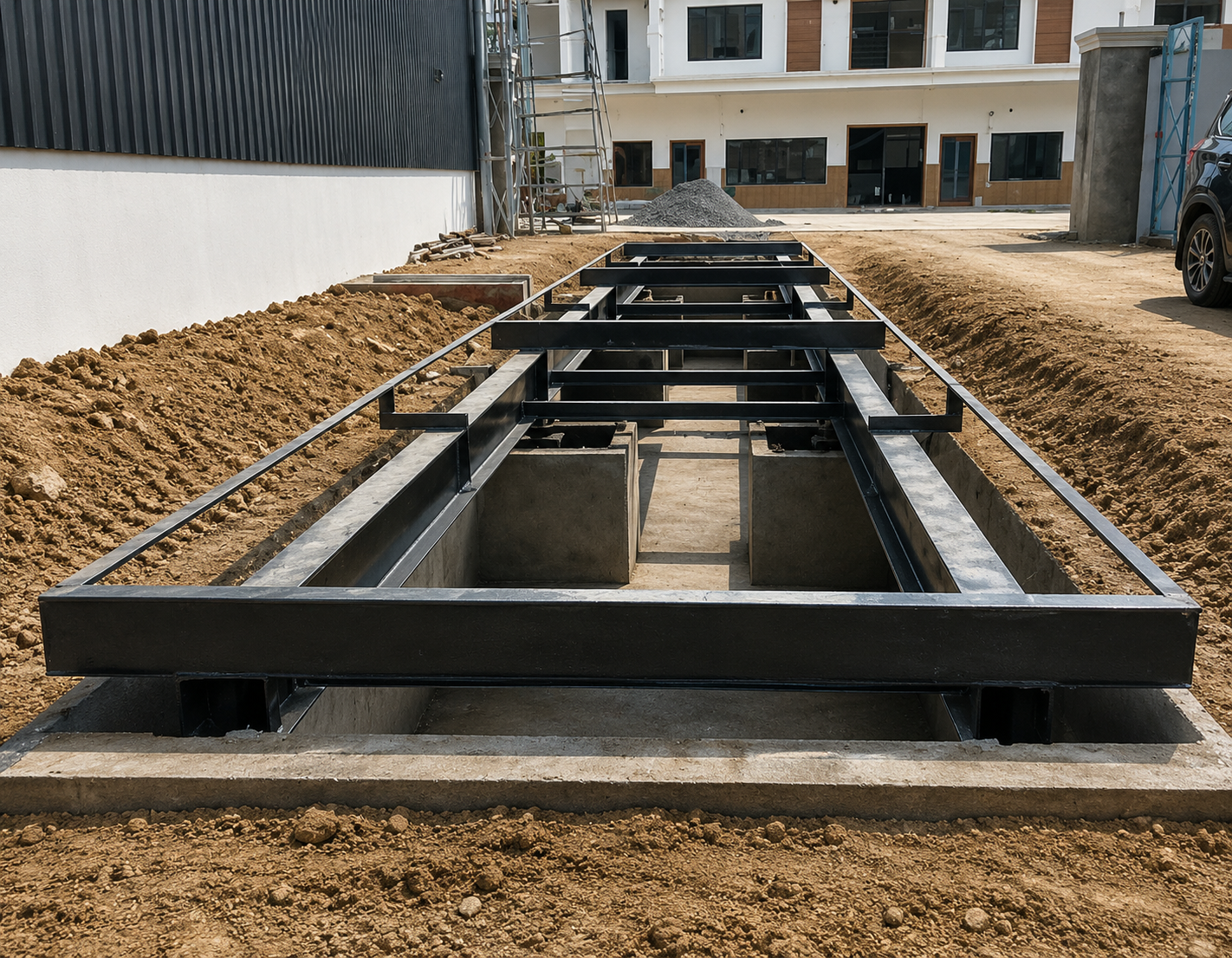

Semi RCC Weighbridge
Semi-concealed steel and RCC construction for rugged long-life industrial installations.
